Marathon Electric Crop Dryer Motor, 10 & 15 HP, 1 Ph, 60 & 60 Hz, 230 & 230 V, 3600 & 3600 RPM, 215TZ Frame, DP
Regular price
$2,242.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

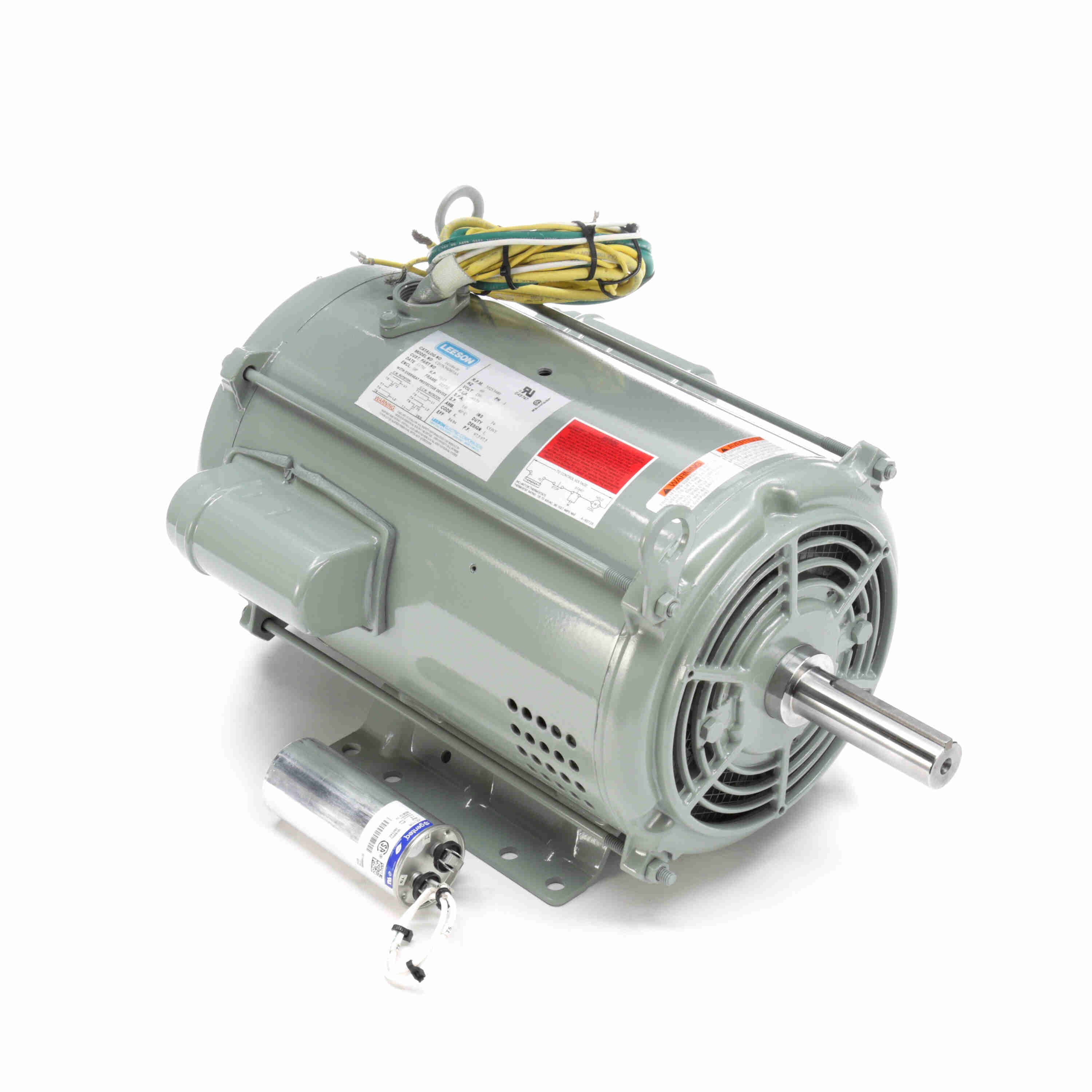

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Crop Dryer Motor, 10 & 15 HP, 1 Ph, 60 & 60 Hz, 230 & 230 V, 3600 & 3600 RPM, 215TZ Frame, DP
Features
- Class “F” insulation system
- Overload protected
- Keyed shaft with 1/4-20 UNC tapped hole on end
- 34” long leads
- Capacitors shipped loose on 1-phase designs
- Motor venting protected against insects and rodents
- Double sealed ball bearings
Specifications
| Performance & Electrical | |
| Power | 10 HP |
| Power (dual rating) | 10 & 15 HP |
| Power | 7.5 kW |
| Voltage | 230 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Speed (max) | 3525 RPM |
| Speed (dual) | 3525 & 3480 RPM |
| Full-load current | 40.0 A |
| Current (dual) | 40 & 59 A |
| Nominal efficiency | 84% |
| Power factor | 97.5% |
| Service factor | 1 |
| Number of poles | 2 |
| Number of speeds | 1 |
| NEMA design | L |
| KVA code | K |
| Duty | Continuous |
| Electrical type | Capacitor Start Capacitor Run |
| Starting method | Across The Line |
| Main winding resistance | .106 Ω |
| Frame & Mechanical | |
| Frame | 215TZ |
| Frame size | 215 |
| Frame suffix | TZ |
| Frame material | Rolled Steel |
| Frame length | 12.4 in |
| Enclosure | Drip Proof |
| IP rating | IP22 |
| Insulation class | F |
| Mounting | Rigid Base |
| Assembly / conduit box | F3 |
| Orientation | Horizontal |
| Rotation | Selective Counterclockwise |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1.125 in |
| Shaft extension | 3.75 in |
| Shaft type | Single Special Extension |
| C dimension | 20.08 in |
| Drive-end bearing | 309 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 206 |
| Opp. drive-end bearing type | Ball |
| Overload protection | Thermostat |
| Compliance & Certifications | |
| CE | N |
| CSA | Y |
| UL | Recognized |
| Connection drawing | EE9048PH |
| Outline drawing | 037960-1240 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 22.63 × 16.13 × 14.25 in |
| Weight | 159.00 lb |
| Identification | |
| Manufacturer part / model | 141084.00 |
| Catalog number | 141084.00 |
| UPC | 691720212035 |
| Country of origin | Mexico |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
