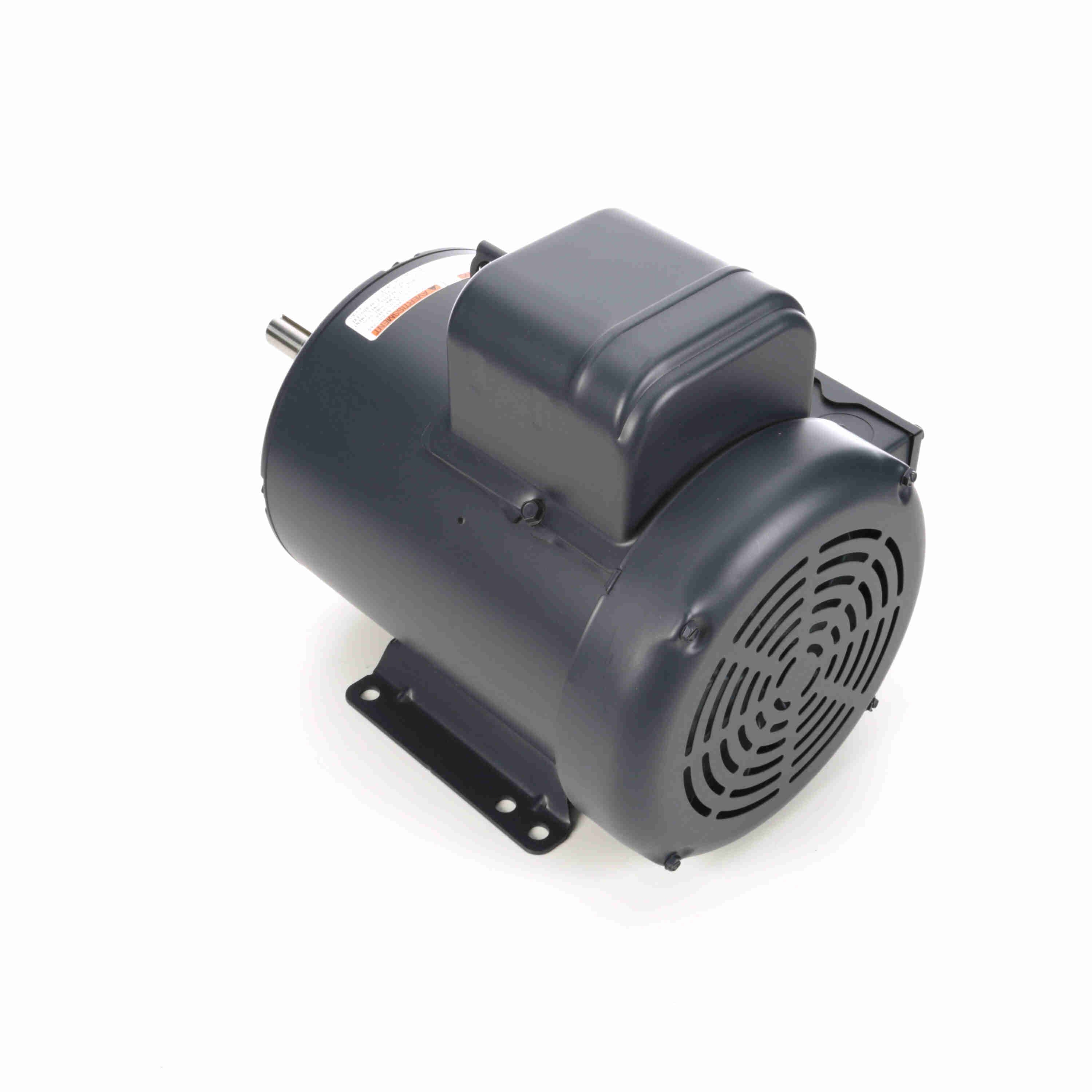

Marathon Electric Close-Coupled Pump Motor, 3 HP, 1 Ph, 60 Hz, 220 V, 3600 & 3600 RPM, 182JM Frame, TEFC
Regular price
$1,607.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Close-Coupled Pump Motor, 3 HP, 1 Ph, 60 Hz, 220 V, 3600 & 3600 RPM, 182JM Frame, TEFC
Features
- Cooling air exhausts at shaft end for maximum cooling
- Locked bearing shaft end
- High efficiency copper windings
- UL and CSA recognized
Specifications
| Performance & Electrical | |
| Power | 3 HP |
| Power (dual rating) | 3 HP |
| Power | 2.2 kW |
| Voltage | 220 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Speed (max) | 3530 RPM |
| Speed (dual) | 3530 RPM |
| Full-load current | 14.0 A |
| Current (dual) | 14.0 A |
| Nominal efficiency | 80% |
| Power factor | 89% |
| Service factor | 1.15 |
| Number of poles | 2 |
| Number of speeds | 1 |
| NEMA design | L |
| KVA code | G |
| Duty | Continuous |
| Electrical type | Capacitor Start Capacitor Run |
| Starting method | Across The Line |
| Main winding resistance | .12 Ω |
| Frame & Mechanical | |
| Frame | 182JM |
| Frame size | 182 |
| Frame suffix | JM |
| Frame material | Rolled Steel |
| Frame length | 9.5 in |
| Enclosure | Totally Enclosed Fan Cooled |
| IP rating | IP43 |
| Insulation class | F |
| Mounting | Round |
| Assembly / conduit box | F1 ONLY |
| Orientation | Horizontal |
| Rotation | Selective Counterclockwise |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 0.875 in |
| Shaft extension | 4.25 in |
| Shaft type | JM |
| C dimension | 16.59 in |
| Drive-end bearing | 6207 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6205 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Connection drawing | 005018.01 |
| Outline drawing | 036397-950 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 20.13 × 14.63 × 12.38 in |
| Weight | 82.00 lb |
| Identification | |
| Manufacturer part / model | 132457.00 |
| Catalog number | 132457.00 |
| UPC | 691720047934 |
| Country of origin | Mexico |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
