Marathon Electric Washdown Pump Motor, 3 & 2 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 182JM Frame, TEFC
Regular price
$2,048.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

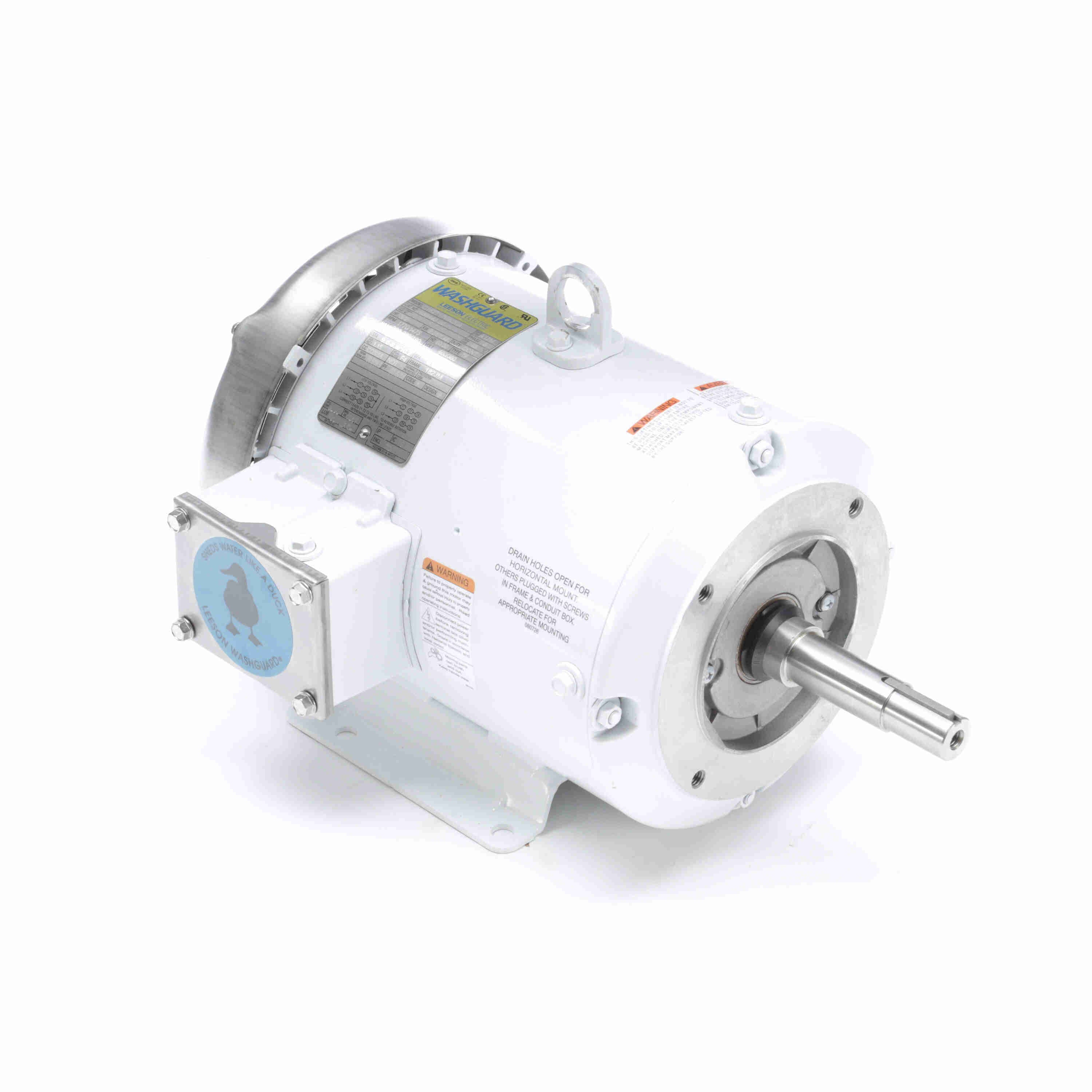

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Washdown Pump Motor, 3 & 2 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 182JM Frame, TEFC
Features
- USDA-approved epoxy painted motors
- NEMA motors
- Rigid base and C face mount types
- UL recognized and CSA certified
- Double lip contact seals and v-ring seals used for shaft seals
Specifications
| Performance & Electrical | |
| Power | 3 HP |
| Power (dual rating) | 3 & 2 HP |
| Power | 2.2 kW |
| Voltage | 230/460 V |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed (max) | 1770 RPM |
| Speed (dual) | 1770 & 1472 RPM |
| Full-load current | 7.8/3.9 A |
| Current (dual) | 7.8/3.9 & 6.6/3.3 A |
| Nominal efficiency | 89.5% |
| Power factor | 80.5% |
| Service factor | 1.15 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | B |
| KVA code | K |
| Duty | Continuous |
| Electrical type | Squirrel Cage Induction Run |
| Starting method | Across The Line |
| Main winding resistance | 6.08 Ω |
| Frame & Mechanical | |
| Frame | 182JM |
| Frame size | 182 |
| Frame suffix | JM |
| Frame material | Rolled Steel |
| Frame length | 9. in |
| Enclosure | Totally Enclosed Fan Cooled |
| IP rating | IP55 |
| Insulation class | F |
| Mounting | Rigid Base |
| Assembly / conduit box | F1/F2 CAPABLE |
| Orientation | Horizontal |
| Rotation | Reversible |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 0.875 in |
| Shaft extension | 4.28 in |
| Shaft type | JM |
| C dimension | 16.13 in |
| Drive-end bearing | 6207 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6205 |
| Opp. drive-end bearing type | Ball |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Y |
| CSA | Y |
| UL | Recognized |
| Connection drawing | EE7308 |
| Outline drawing | 035480-900 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 17.94 × 13.06 × 12.88 in |
| Weight | 90.00 lb |
| Identification | |
| Manufacturer part / model | 132442.00 |
| Catalog number | 132442.00 |
| UPC | 691720052099 |
| Product line | PowerWash™ XT Pump |
| Country of origin | Mexico |
| Substitute part | 182TTWW16027 |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
