Marathon Electric Agricultural Motor, 2 HP, 1 Ph, 60 Hz, 115/208-230 V, 1800 & 1800 RPM, 182T Frame, TEFC
Regular price
$1,167.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

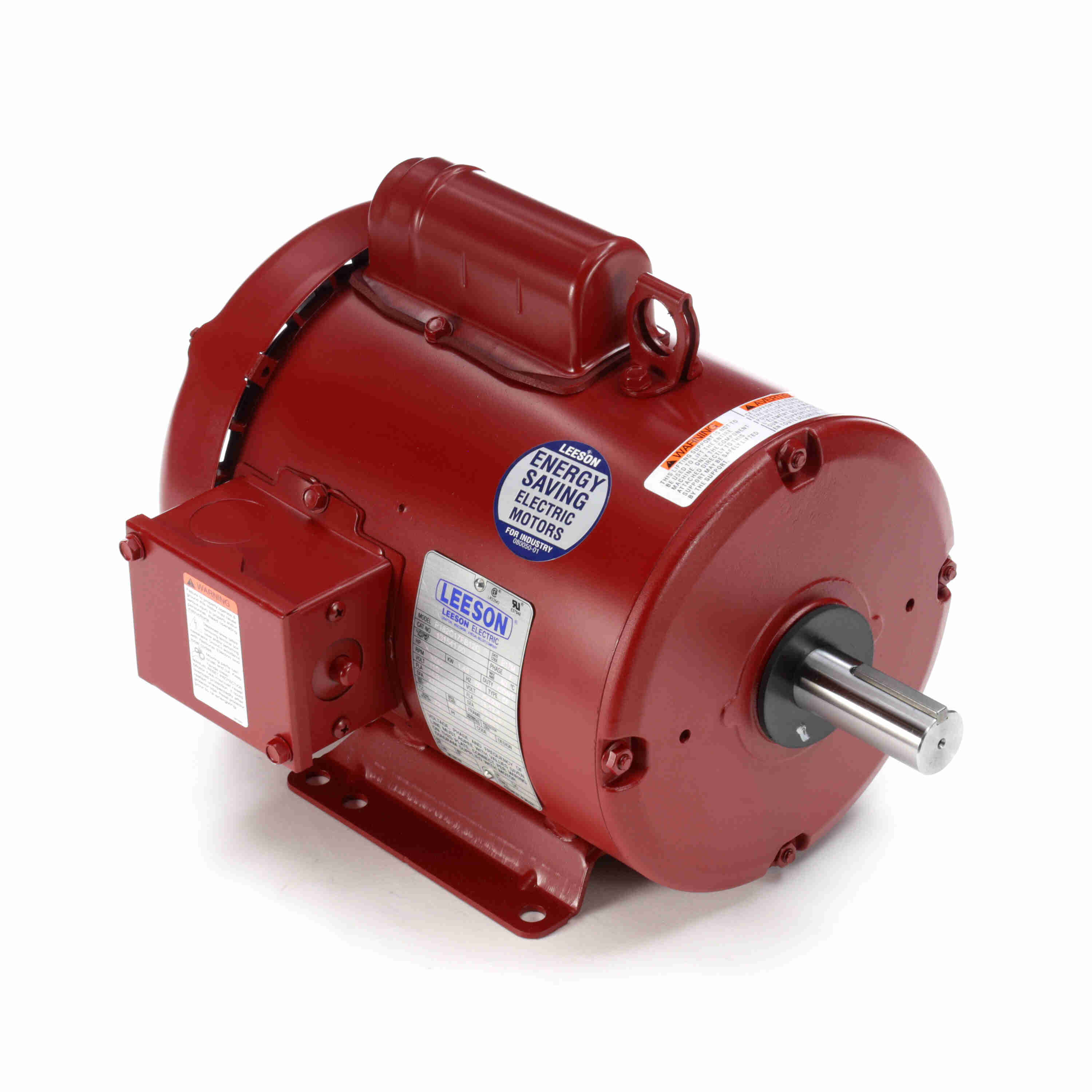

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Agricultural Motor, 2 HP, 1 Ph, 60 Hz, 115/208-230 V, 1800 & 1800 RPM, 182T Frame, TEFC
Features
- Gasketed capacitor cases and conduit box covers
- Meets or exceeds NEMA service factors
- Double sealed ball bearings
- Single phase designs
- Condensate drains on general purpose Ag motors
- Low temperature manual overload protected
- High starting torque ratings
Specifications
| Performance & Electrical | |
| Power | 2 HP |
| Power (dual rating) | 2 HP |
| Power | 1.5 kW |
| Voltage | 115/208-230 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Speed (max) | 1740 RPM |
| Speed (dual) | 1740 RPM |
| Full-load current | 24.8/13.0-12.4 A |
| Current (dual) | 24.8/13.0-12.4 A |
| Nominal efficiency | 72% |
| Power factor | 75% |
| Service factor | 1.15 |
| Number of poles | 4 |
| Number of speeds | 1 |
| NEMA design | L |
| KVA code | K |
| Duty | Continuous |
| Electrical type | Capacitor Start Induction Run |
| Starting method | Across The Line |
| Main winding resistance | .22 Ω |
| Frame & Mechanical | |
| Frame | 182T |
| Frame size | 182 |
| Frame suffix | T |
| Frame material | Rolled Steel |
| Frame length | 9. in |
| Enclosure | Totally Enclosed Fan Cooled |
| IP rating | IP43 |
| Insulation class | F |
| Mounting | Rigid Base |
| Assembly / conduit box | F1 ONLY |
| Orientation | Horizontal |
| Rotation | Selective Counterclockwise |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 1.125 in |
| Shaft extension | 2.75 in |
| Shaft type | T |
| C dimension | 14.46 in |
| Drive-end bearing | 6206 |
| Drive-end bearing type | Ball |
| Opp. drive-end bearing | 6205 |
| Opp. drive-end bearing type | Ball |
| Overload protection | Manual |
| Compliance & Certifications | |
| CE | N |
| CSA | Y |
| UL | Recognized |
| Connection drawing | 005067.02 |
| Outline drawing | 035747-900 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 20.13 × 14.63 × 12.38 in |
| Weight | 65.00 lb |
| Identification | |
| Manufacturer part / model | 131541.00 |
| Catalog number | 131541.00 |
| UPC | 691720017890 |
| Country of origin | Mexico |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
